Helicóptero Agusta Westland AW169 VIP - Ano 2016 - *FOB
Fabricante: Agusta Westland
Modelo: AW169
Categoria: Helicóptero Biturbina
Horas totais: 170
Assentos: 10
Ano: 2016
REF: AV6714

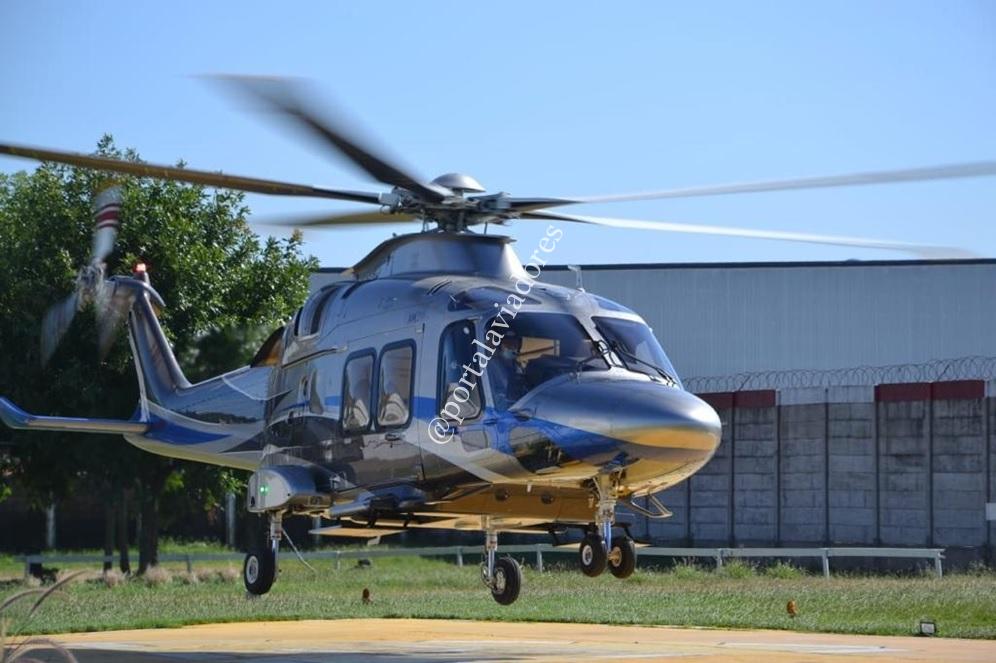

Helicóptero Agusta Westland AW169 VIP  *FOB



AgustaWestland AW169 é um helicóptero bimotor de 10 lugares e 4,8t desenvolvido e fabricado pela divisão de helicópteros da Leonardo  (anteriormente AgustaWestland , incorporada pela Finmeccanica desde 2016).

O AW169 atende à crescente demanda por um helicóptero de última geração que combina desempenho líder de classe com alcance e segurança superiores. O versátil AW169 oferece capacidade operacional incomparável nas condições mais desafiadoras. Ele também possui um modo de Unidade de Potência Auxiliar (APU) exclusivo da classe que garante a prontidão da missão com os rotores parados e maior segurança no solo.

O AW169 garante os mais altos níveis de segurança. Ele atende a todos os padrões e regulamentos de certificação mais recentes, enquanto o cockpit de vidro combina aviônicos de última geração com visibilidade externa excepcional. Isso maximiza a consciência situacional e minimiza a carga de trabalho do piloto durante as operações diurnas e noturnas, aumentando a segurança operacional.



AIRFRAME

  • Year Of Manufacture  2016
  • Start Of Flight Operation  March, 2017
  • Total Time Since New  170.7 hours
  • Total Landing Since New  417 landings



HIGHLIGHTS

  • One Private Owner Since New
  • All Original Records since New
  • No Damage History / No Incidents
  • Fresh Annual Inspection c/w June, 2022



ENGINES

Model:  Pratt & Whitney PW210A

ENGINE 1  ENGINE 2

Serial Numbers:  PCE-BP0039  PCE-BP0012

Total Time Since New:   175.3  170.7

Total Cycles Since New:  325  303



EXTERIOR

  • Customized Paint Scheme – Overall Metallic Silver Paint
  • Blue and Black accent stripes
  • Retractable Landing Gear
  • Electrically operated cabin dual step
  • Baggage Compartment extension – Baggage smoke sensor
  • Emergency Floats – Removable
  • External Life Raft on Sponson – Removable



OTHER EQUIPMENT

  • Anti-icing fuel systems and two magnetic chip detectors (one per engine)
  • Independent dual-channel FADEC systems (one per engine)
  • Fire detection / extinguisher system
  • Crashworthy fuel cells (1140 litres of usable fuel)
  • Filler port for gravity refueling (on left hand side)
  • Dual independent, redundant hydraulic system
  • Retractable swiveling Landing / taxiing lights (2)
  • Provisions Only for Weather Radar
  • Aux fuel tank equipment
  • Steps for cockpit / cabin access
  • Overhead cockpit window sun shades
  • First aid kit (as per JAR OPS 3)
  • One cockpit and one cabin fire extingisher (as perJAR OPS 3)
  • Pilot/ Co-pilot crashworthy adjustable seats (with inertial reels and separate 5 points safety belts)

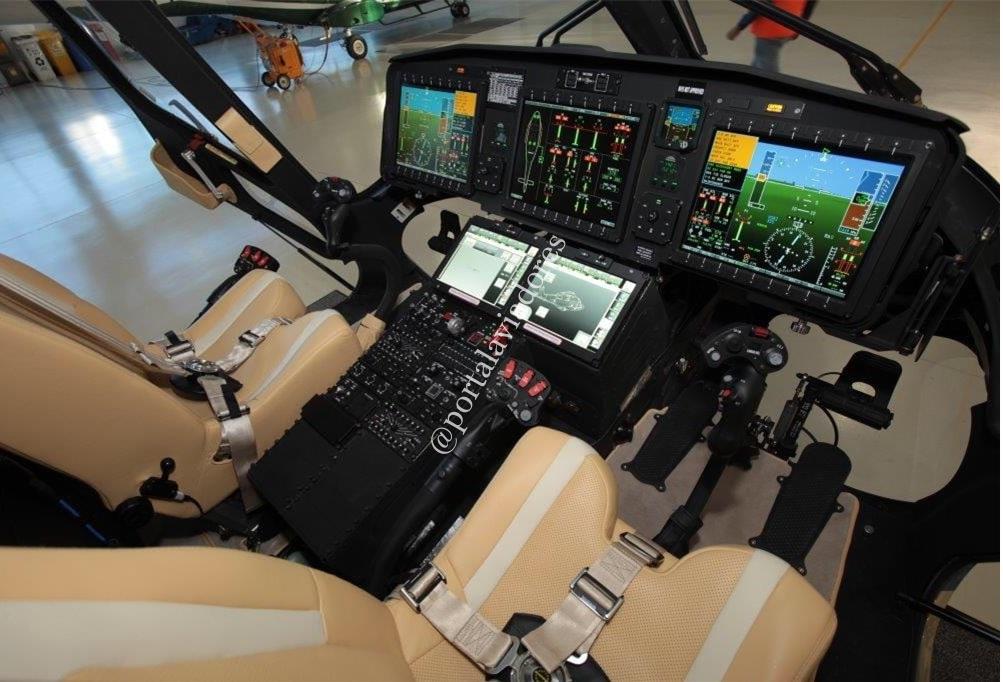

COCKPIT EQUIPMENT

  • Three Rockwell Collins Display Units 10” X 8” color AMLCD with LED backlight and NVIS compatibility:
  • 2 Primary Flight Displays and 1 Multi-Function Display
  • Integrated Standby Instrument System (ISIS)
  • Two Display / cursor Control Panels/Devices (DCP/CCD)
  • Reversionary Control Panel (RCP)
  • Two Master Caution / Warning Lights (MCL/MWL)
  • Two Avionics Full Duplex Ethernet (AFDX) switches
  • Two Aircraft Monitoring & Management Computers (AMMC)
  • Data Transfer Device (DTD)
  • Two touch screen control panels
  • Four Axis Automatic Flight Control System (AFCS)
  • Two Flight Control Computer (FCC)
  • Flight Control System (FCS) Control Panel
  • Two VHF-AM radios
  • Two NAV (VOR/ILS/MB) receivers
  • One ADF / DME
  • Transponder with Enhanced Surveillance Mode (Mode S)
  • First SBAS GNSS (GPS)
  • Second SBAS GNSS (GPS)
  • Two Audio Control Panels (Pilot and Co-pilot stations)
  • Audio Management Unit interfacing external transceivers
  • Passenger Intercom Amplifier
  • Two flux valves
  • Two Air Data and Altitude Heading Reference Systems (ADAHRS)
  • One solid state Cockpit and Voice Flight Data Recorder with ULB
  • Approach plates chart holders with lights for pilot and co-pilot
  • Dual Radar Altimeter
  • Pilot Clock/Co-Pilot Clock
  • TCAS III
  • Moving map
  • ADS-B Out
  • Health and Usage Monitoring System (HUMS)
  • Flight Data Monitoring system (FDM)
  • Helicopter Terrain Avoidance and Warning System (HTAWS)
  • Synthetic Vision System (SVS)
  • Enhanced Vision System – MaxViz EVS-1500
  • Rotor brake system
  • One Emergency Locator Transmitter (ELT – 3 frequencies) (fixed)
  • Co-pilot hinged window (storm window)

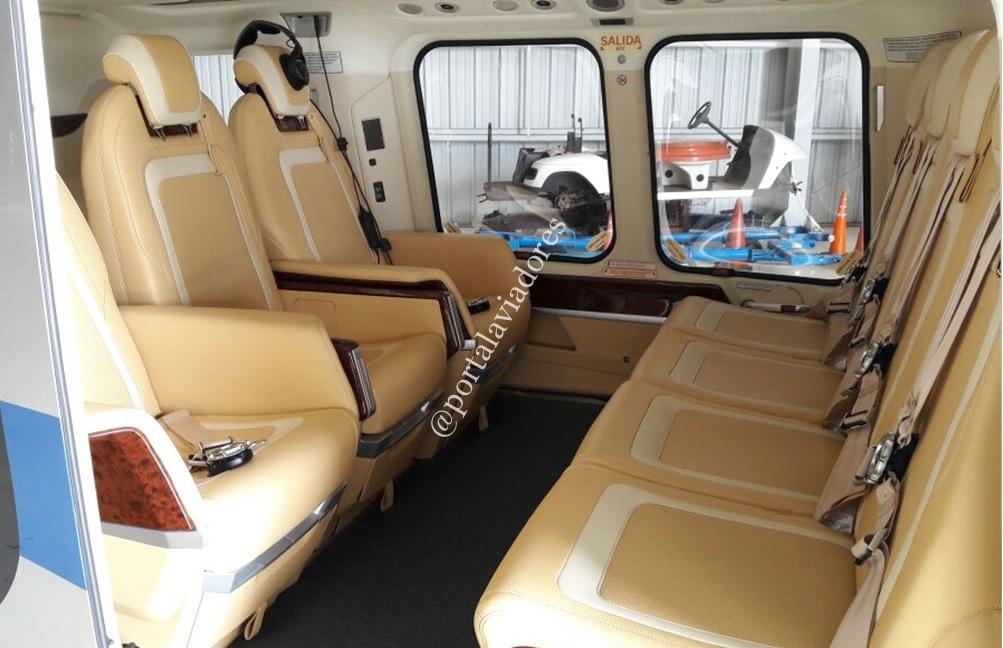

INTERIOR

  • VIP “Diamond” Interior Layout 7 Pax (4+3)
  • Extended Cabin VIP Composite Liners leather/leatherette covered with enhanced soundproofing
  • Cabin ambient Mood Multicolor – LED lights, white LED reading light – 4 Coat Hooks
  • Environmental Control system (ECS) – Air Conditioning
  • Inter-Communication System for all passengers – Headsets are Bose ANR type (Qty. 7)
  • Customized Luxury cabin finishing and decoration trim with metal inserts
  • Handmade customised passenger carpet
  • Comfortable VIP seat leather covered sliding and with reclinable backrest (Aft Facing – Qty. 3)
  • Side Armrest Cabinets (RH / LH) for aft facing seats – Armchairs leather covered (w inertial reel & safety belts) (Qty. 2)
  • Central seat leather covered sliding and with reclinable and forward foldable backrest (Fwd facing)
  • Separation wall leather covered with manual sliding window and roll up curtain on pilots side
  • Basic Entertainment and Cabin Management System (CMS) including 4.3” Touch screen panel and one iPad mini for lighting system and ECS control
  • Cabin Active Comfort Enhancer VIP



A aeronave acima é de terceiro e como tal sujeita a venda prévia e/ou alteração de preço. Dados fornecidos pelo proprietário, sujeitos a verificações.
